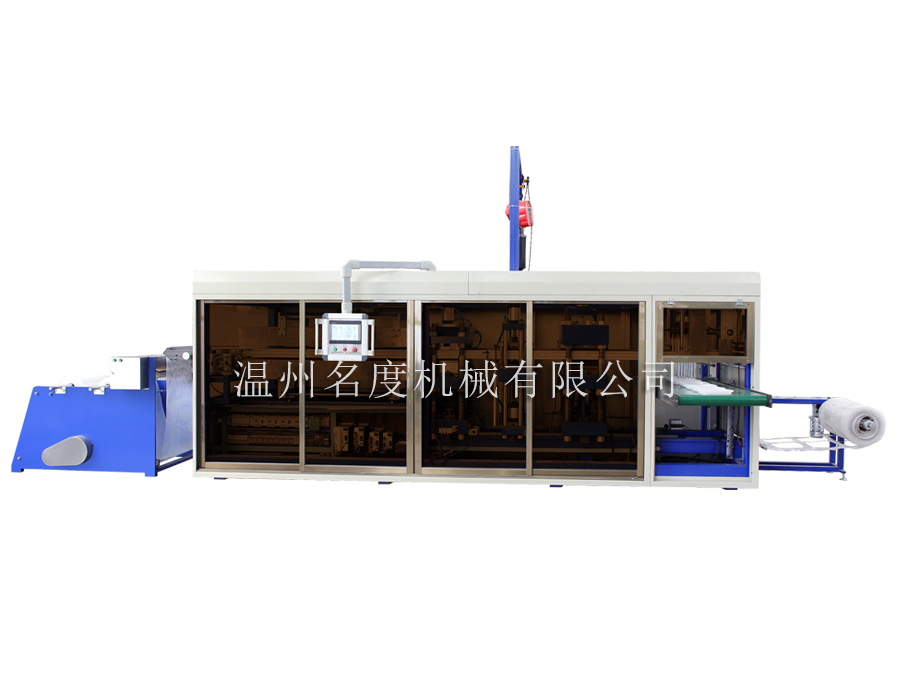

MODEL-600L MULTI-STATION THERMAL FORMING MACHINE
MODEL-600L多工位熱成型機（400mm*600mm）

technical parameter：技術參數型號 Model	MODEL-600L多工位熱成型機
適用片材 Suitable Sheet	PP+PE, Casting PP, PVC, PS, PET, PSP, PLA
最大成型面積Largest Forming Area	600mm*400mm
片材最大寬度 Maximum Width	620mm
最大成型深度 Maximum Depth	80mm
整機功率 Power	70Kw
加熱箱長度Heating Box Length	1800mm
加熱瓦張數 Heating tile Quantity	140pcs
工作氣壓 Air Pressure	0.6-0.8Mpa
生產速度 Production rate	10-30模／分鐘（die／min）
片材厚度 Depth of Sheet Material	0.10mm-1.50mm
整機重量 Weight	5000Kgs
機身尺寸 Overall Dimension	9000mm*1800mm*2200mm（L*W*H）

產品簡介: Introduction:
MODEL-600L多工位熱成型機是我司根據市場及客戶的需求而研發的新型機器。該機是一種多工位的自動機械，具有同步完成成型，沖孔，沖切，從而得到最終的塑料制品。 因此大大降低了勞動力和生產成本的投入，提高了工作效率。而且用途廣泛，可應用于五金、食品、藥品、化妝品等PS/PET/PVC/PP/PSP/PLA塑料制品的生產。

• MODEL-600L multi-station thermal forming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PSP/PLA plastic products.

配置特點：Main Features:
加熱箱長度達到1800mm,以至于加熱區域可以得到4-5次的均勻加熱，最終的可以得到更完善的制品。
Heating case arrived to 1800mm, so that forming area can heat about 4-5times, then we can get the perfect end product.
140張的德國進口加熱瓦，采用上下加熱的方式。
It has 140pcs heating tiles which are from GERMANY, the heating type is upper and down heating together.



主要特點：Main Features:
采用機械手堆垛，提高效益，較少勞動成本;
采用激光刀裝置，較少模具成本，防止小訂單流失
結構緊湊，運行平穩，操作簡單，維護方便;
伺服調整，人機觸摸屏界面;
行程任意可調,模具更換簡便;
可據用戶要求設計模具;

Stacking with robots improves efficiency and reduces labor cost.
Laser knife device, less mold cost, to prevent the loss of small orders.
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;
